12000L intelligentized hot mix asphalt machine tar

FOB Reference Price:Get Latest Price
$100,000.00 - $200,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
ZQZ5253GLQ
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Retail, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine, Motor
Place of Origin:
Zhejiang, China
Brand Name:
ICOM
UNIQUE SELLING POINT:
Low Maintenance Cost
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Asphalt machine
Tank capacity:
12000L
Asphalt pump model:
QGB950
Burner model:
G20(Riello)
Hydraulic motor:
L2F107W2P2
Hydraulic pump model:
CBQ-F563
Spray width:
6000mm
Engine model:
B210 33
Max. power:
155kw
Supply Ability
Supply Ability:
10 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
nude, surface injecting the wax
Port
SHANGHAI

Product Description



Product Application

ZQZ5253GLQ Intelligent Asphalt Distributor is the only asphalt distributor using the new generation of Dongfeng Kinland bearing chassis for heavy truck of Dongfeng Motor Co., Ltd. It integrates the advanced technology of the current asphalt distributor, and in the development process realizes a lot of independent innovation, so that compared to similar products system and performance are improved, especially in technology, safety, economy, reliability, comfort, etc.

Main Technical Parameter Of The Asphalt Distributor

Mass parameter
Kerb Weight
kg
13800
Total Weight
kg
25000
Rated loading Weight
kg
11070

Chassis Parameter
Wheelbase
mm
1950+5350
Tread
mm
1913/1913/1860
Front Overhang
mm
1460

Spray specification
Tank Capacity
12
Spray width
mm
6000
Spray Value
kg
0.5-3.0

Performance

1 Nozzle:
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep
2 Heat Conducting Oil System:
a.The new Heat Conducting Oil System can heat asphalt and pump faster
b.Especially in use of spraying emulsified asphalt,speed up the heating efficiency and save fuel
3 Controller:
a.Control system is more friendly and easier to be operated.
b.Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard..
4 Cleaning:Can use diesel fuel or high-pressure air cleaning of pipes and pumps
5 Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption.


Detailed Images





Machine Parts

Name: Spray nozzle

Brand: ZHUMA

Original: China

Fine detail and craftsmansh, high quality.

Main Features

Name: Nozzle
Brand: ZHUMA
Original: China
Fine detail and craftsmansh, high quality.



Our Service

Best Services Just For You!!

We are 5 years gold supplier on Alibaba.

Click the Link to our homepage.

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

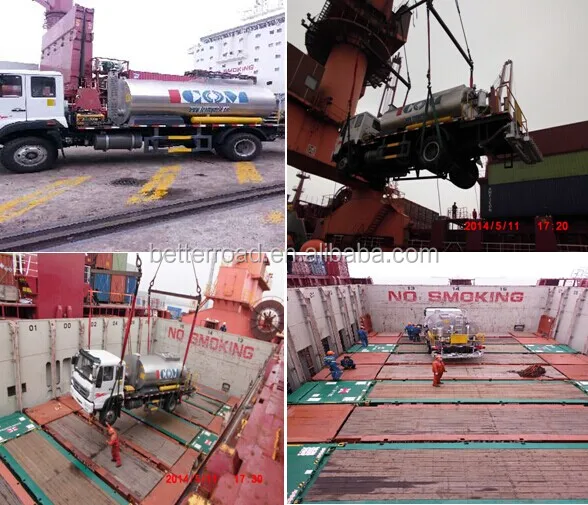

Packing & Delivery



Packaging
Size
as you need
Weight
25000kg



Packaging Details
container or nude
spraying wax on the appaerance
according to customers special request.


Our Company

Hangzhou ICOM construction Machinery Co., Ltd. is a professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment . Based on innovation and expertise, we have received more than 10 patents, selling more than 20 countries and regions.Focus cast quality, intentions to win the trust. We will offer innovative, professional, practical asphalt machinery and equipment with the spirit of craftsman.
